Chapter 8 Adaptation

By now, you have developed a basic understanding of how mutation, selection, genetic drift, and migration influence evolutionary change. Natural selection continuously nudges populations toward optimal trait expression by counter-selecting traits and trait combinations that lead to inferior performance in any given environment. Yet, despite this continuous nudging, most populations elude perfect adaptation to their environment. The constant input of maladaptive alleles through mutation and migration, and the inescapable effects of genetic drift, move populations away from phenotypic optima. Furthermore, there are fundamental constraints and trade-offs that limit adaptive evolution. Optimal solutions to an ecological problem may be out of reach because there is simply no genetic variation in traits upon which selection may act. Furthermore, evolutionary outcomes invariably represent a compromise reflecting the diverse needs and functions of organisms. It may be impossible to optimize two traits even if they appear unrelated, either because they are linked through antagonistic pleiotropy (the theory that genes that increase fitness during the reproductive time may limit the overall lifespan) or due to trade-offs in the allocation of energy and nutrients. There might even be functional trade-offs, where the same trait is used for multiple functions and all cannot be optimized at once. For example, think of the trade-offs associated with rapid acceleration and endurance.

Clearly, not every trait of an organism, and every use of a trait, is adaptive. So how do we recognize adaptations in natural systems? How do we determine if organisms are well-adapted to their environment, and what traits are important in mediating adaptation? People—even some of the most rigorous scientists—are quick to come up with plausible narratives about trait evolution and function. But in many cases, these narratives are merely “just-so-stories”; ideas that, while plausible, have little scientific merit because they do not lead to testable hypotheses. Plausibility, it turns out, is not evidence—or as Yvan Audouard said more poetically: “Plausibility is a trap for the truth laid by lies.”

Consider, for example, the giraffe (Figure 8.1). Ask anyone why this peculiar species of ungulate has such a long neck, and most will come to the same conclusion as Lamarck did over 200 years ago: it must be to reach leaves high up in the trees, where they can evade competition with other browsers foraging at lower heights. However, observational studies indicate that giraffes most frequently pick leaves at shoulder height, where other species can reach them as well. Instead, there is evidence that neck size plays a role in sexual selection, both when it comes to territorial disputes between males and in female mating preferences. Thus, the notion that long necks currently serve an adaptive function for foraging and competitive exclusion rests on thin evidence. Does that mean that selection on foraging success did not play a role in the elongation of the giraffe’s neck? No! We have to be cognizant of the fact that the functions of a trait may change through time; we cannot necessarily make inferences about the origin of a trait based on its current use. Elongated necks may very well have started as an adaptation to reach food high up—but current data holds more evidence for the impact of neck-size variation on giraffe mating success than evidence for its impact on foraging success.

In this chapter, we will take a closer look at the identification and study of adaptation in organisms living in their natural habitats.

Figure 8.1: Giraffe in Tsavo. Photo: Anna Langova, CC0.

8.1 Inferring Adaptation

There are many ways to infer adaptation in natural systems, and there is no one-size-fits-all approach. The nature of selection, the natural history of the focal organisms, and the resources available to and logistical constraints imposed on the research team all impact what kind of data is feasible to collect. Here, I want to introduce some general approaches to study adaptation: comparative analyses among species, observational and experimental studies on individual species, and comparative studies among populations of the same species.

8.1.1 Interspecific Comparisons

Convergent evolution—where evolutionarily-independent lineages evolve similar traits to adapt to similar ecological niches—is frequently invoked as evidence for adaptation. For example, the convergent modification of forelimbs to form wings in bats, birds, and pterosaurs all evolved as an adaptation for flying. The inference of convergence is not always so trivial, though—especially when focal species are more closely related, and the evolutionary independence of species is not necessarily evident.

Consider Figure 8.2 as an example. In both scenarios (A and B), three species are associated with a novel habitat (habitat 2, in green) and exhibit divergence in a phenotypic trait. In the first scenario (Figure 8.2A), the species in the novel habitat form a monophyletic group, suggesting that all three of them have inherited the novel habitat affiliation and the phenotypic trait modification from their shared ancestor. In other words, there has been a single evolutionary transition in habitat affiliation, and a single evolutionary transition in the phenotypic trait, which deflates the evidence for correlated evolution between habitat and trait as a consequence of adaptive evolution. After all, that same correlation may be spurious, having arisen by chance. This scenario is known as phylogenetic pseudoreplication; if we treat each species as an independent replicate, we gloss over the fact that there has only been a single evolutionary transition.

In the second scenario, the situation is different; the colonization of the novel environment and the associated change in phenotypic trait have independently occurred three times, as evidenced by the fact that all three species in habitat 2 (green) have a sister species in habitat 1 (blue; Figure 8.2B). The fact that the same correlated changes happened independently multiple times provides more robust evidence for the effects of selection, as we would not expect the same habitat-trait association to evolve repeatedly by chance. As any good experiment designed by researchers, the quality of natural experiments also relies on adequate replication; it is the number of independent evolutionary shifts, and not the number of species, that is the unit of replication.

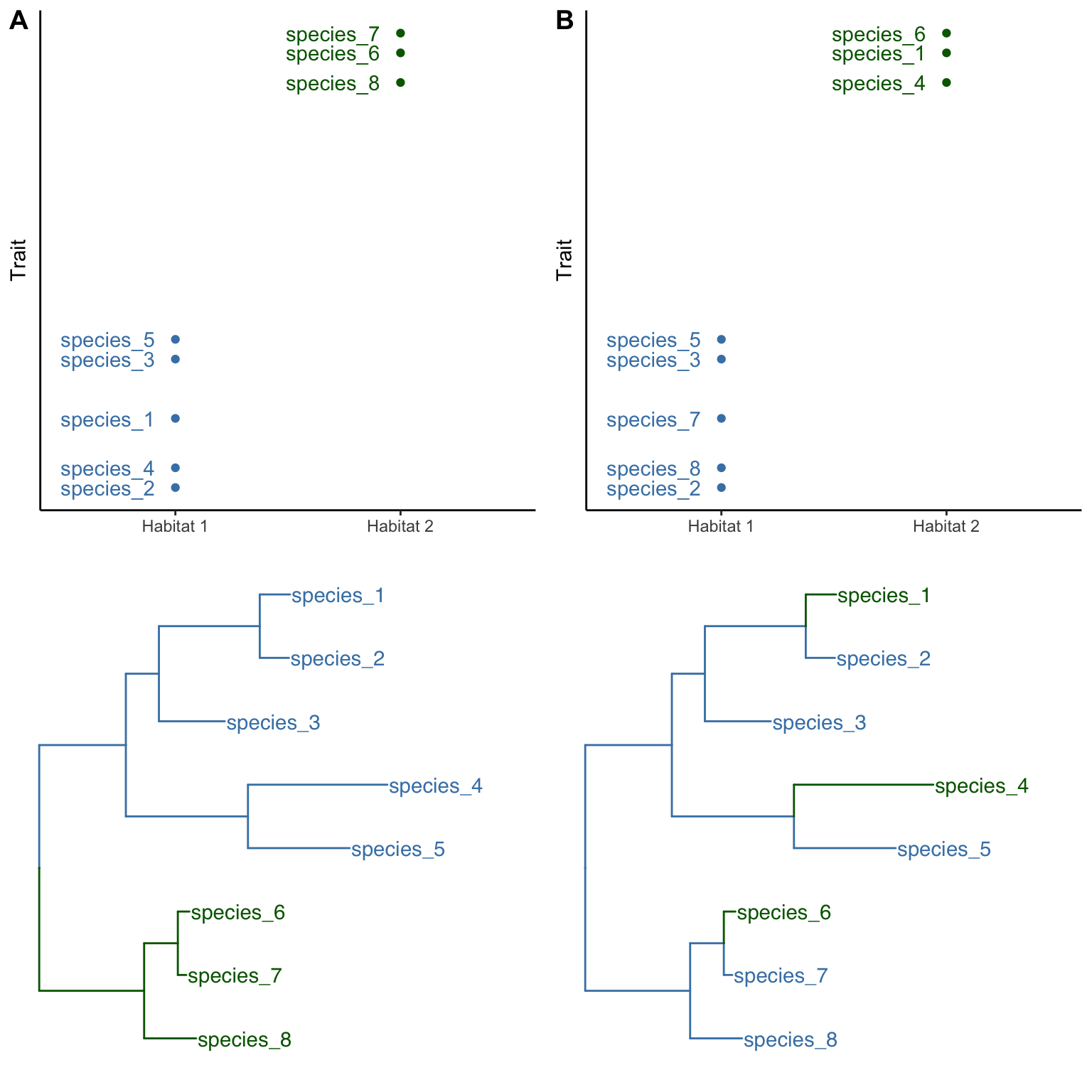

Figure 8.2: Two hypothetical scenarios of how the same pattern of association between habitat type and phenotype might arise. A. In the first scenario, habitat 2 (green) was invaded once by the shared ancestor of species 6, 7, and 8, representing a single evolutionary transition. This is an example of phylogenetic pseudoreplication. B. In the second scenario, species 1, 4, and 6 have independently colonized habitat 2 (green). Each of the species is sister to a species occuring in the ancestral habitat 1 (blue).

In reality, the phylogenetic distribution of traits does not neatly follow either scenario outlined in Figure 8.2. Consider the evolution of piscivory, and the associated evolutionary change in gape width, in the fish family Centrarchidae—which includes black basses, sunfishes, and crappies (Figure 8.3). Naively, we could just compare the gape width of piscivorous and non-piscivorous species. But as you can glean from the from the phylogeny, the evolution of piscivory is more complicated. There are two independent transitions towards piscivory in the genus Lepomis, but multiple piscivorous species are derived from a single piscivorous ancestor in other clades (Micropterus and the clade with Ambloplites, Archolites, and Pomoxis).

Multi-species comparative analyses consequently must account for the fact that species are related to each other to varying degrees. Comparing species of Lepomis is not the same as comparing species of Lepomis and Micropterus. More closely related species tend to be more similar than more distantly related ones, and comparative analyses need to account for that. In practice, we use phylogenetic comparative analyses (PCA) that explicitly include information about evolutionary relationships to test hypotheses about trait evolution. The use of well-resolved phylogenies in PCA allows us to statistically account for potential phylogenetic pseudoreplication in comparative analyses. Among the most commonly used methods in PCA are phylogenetically independent contrasts and phylogenetic generalized least squares, which are used to test associations among response variables while controlling for the non-independence of species.

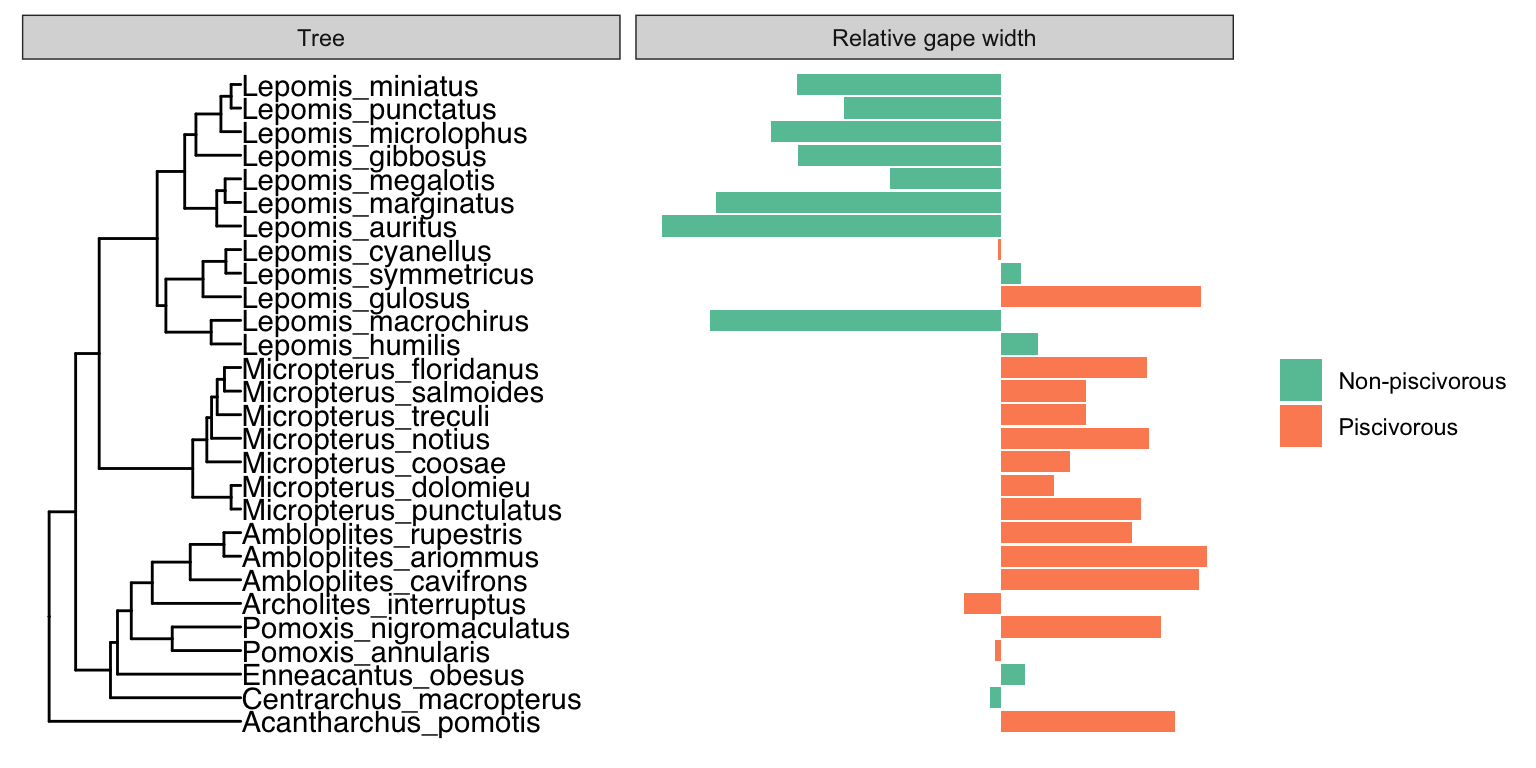

Figure 8.3: Gape width variation of centrarchid fishes as a function of their dietary habits. Species with higher than average gape will have positive scores, species with lower than average gape width have negative scores. The phylogenetic tree in the left panel indicates that piscivory has evolved independently multiple times within the family. Phylogeny from Near et al. (2005); gape width data from Collar et al. (2009).

Explore More

If you are interested in learning more about phylogenetic comparative methods, I recommend Luke Harmon’s book “Phylogenetic Comparative Methods: Learning from Trees”, which is available for free online.

8.1.2 Intraspecific Studies

Studies of adaptation often focus on single species. Single species studies either use observational approaches, examining organisms in their natural environment, or experimental approaches that manipulate a single, well-defined factor while other variables are held constant. Observational studies promote a better understanding of organisms in their natural environment, but they often cannot control for all confounding variables. Hence, observational studies are typically correlational and do not establish causation between traits, function, and fitness. In contrast, experimental manipulations allow us to establish causal relationship between variables, but sometimes lack the nuanced context of natural situations. There may be a causal link between variation in a trait and fitness under experimental conditions, but the results can be misleading if the experimental conditions are not representative of the natural context. The most powerful studies of adaptation consequently combine observational and experimental data. Here, I provide some illustrative examples of observational and experimental studies that focus on understanding the adaptive nature of animal behavior.

Observation

Habitat use is one of the most fundamental aspects of animal behavior. In ectotherms, habitat use is governed by a number of potential factors, including resource availability, predation risk, and a need for thermoregulation. But with competing needs, which factors determine where an individual chooses to spend its time? Huey and Kingsolver (1989) used thermal performance data of desert iguanas (Dipsosaurus dorsalis) to make predictions about habitat use in nature. Assessment of multiple aspects of temperature-dependent physiological performance (burst speed, digestive efficiency, endurance, and hearing efficiency; Figure 8.4A) indicated that the lizards’ optimal body temperature is between 35.4 and 40.6 °C (average: 38.7 °C). Above or below that range, physiological performance starts to decline. Huey and Kingsolver wanted to know if lizards in natural habitats choose their environment so as to optimize their physiological performance. Monitoring body temperature in free-ranging lizards indeed indicated that individuals choose their microhabitats to maintain a relatively narrow temperature range that coincides with the physiological performance optima. This adaptive behavior is called behavioral thermoregulation. The fact that lizard habitat choice is primarily driven by behavioral thermoregulation suggests that other factors—such as resource availability and predation—are not likely to limit the lizards’ ability to find microhabitats with suitable temperatures (or perhaps considering resource distribution and the presence of predators could explain why some lizards exhibited slightly higher or lower body temperatures than expected).

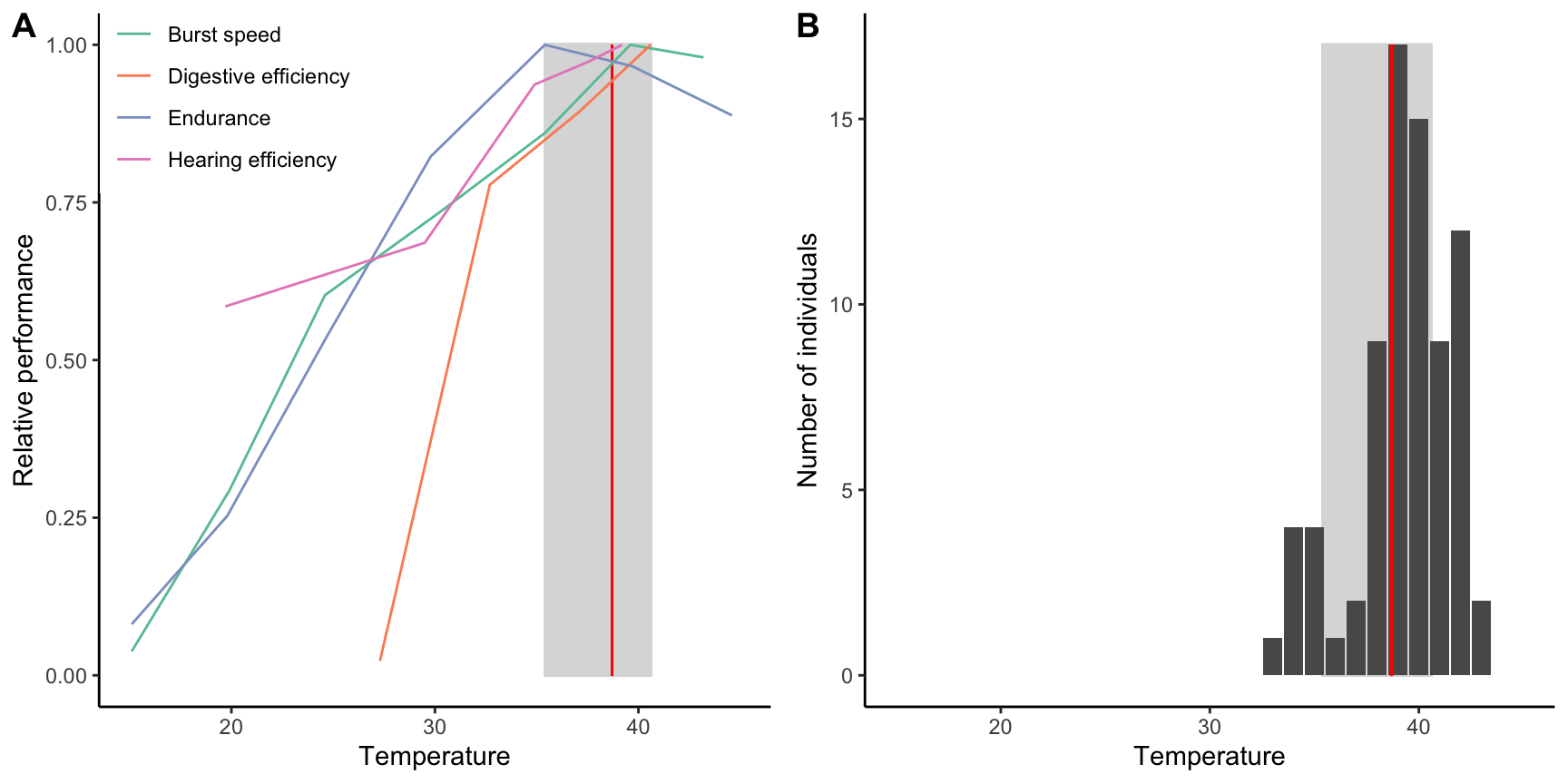

Figure 8.4: A. Thermal performance curves for different performance metrics of desert iguanas. B. Frequency distribution of body temperatures of active lizards in nature. In both panels, the zone of optimal performance is indicated by gray shading, the average optimum by the red vertical line. Physiological performance and body temperature data from Huey & Kingsolver (1989).

In some instances, optimization of one behavior may be prevented by other competing needs. This is illustrated by the interaction between predator avoidance and foraging behaviors in stickleback fish (Gasterosteus aculeatus). In the absence of predators, stickleback preferentially attack when prey (water fleas, Daphnia) are found in larger swarms (at higher prey densities) to maximize energy acquisition rates (Figure 8.5). In contrast, when a predator (a kingfisher) is present, stickleback preferentially feed at lower prey densities (on smaller Daphnia swarms). This shift in behavior reflects the competing sensory and cognitive resources required to navigate feeding while also paying attention to potential threats from predators. The results also highlight how observational studies can lead to conflicting results when the effects of confounding variables are not properly accounted for. Good observational studies quantify a wide variety of auxiliary data that allows researchers to exclude alternative hypotheses post hoc. Despite all the limitations, collecting observational data is often the only way to address evolutionary hypotheses in natural systems, simply because experimentation with elephants, colonies of army ants, or rainforest giants is just not feasible.

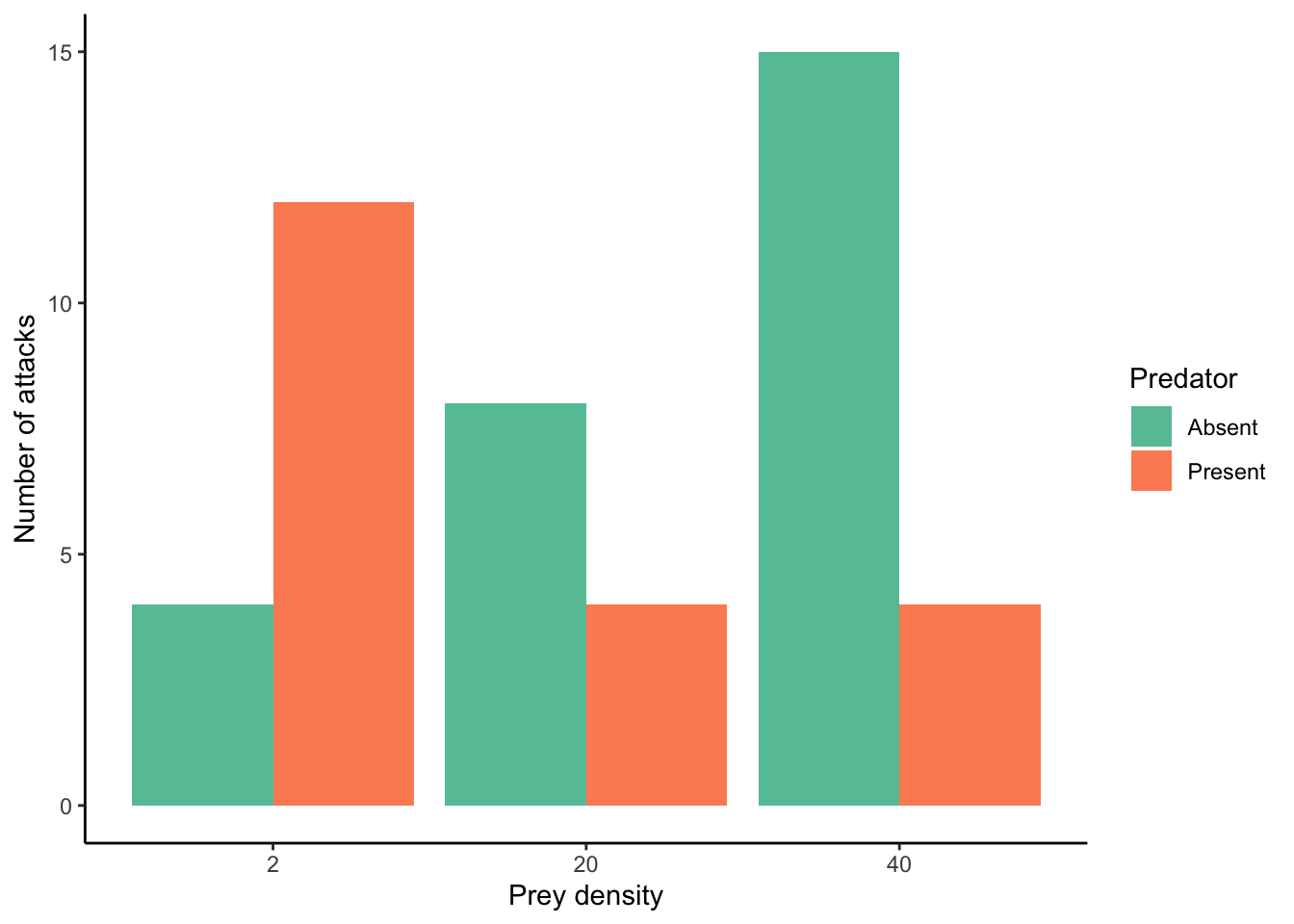

Figure 8.5: Attacks of stickleback on water fleas (Daphnia) at different prey densities in presence and absence of a predator (kingfisher). Data from Milinski & Heller (1978).

Experimentation

Experimentation is among the most powerful tools in science, because the meticulous manipulation of specific variables—while holding all others constant—allows for the inference of causal relationships. Experimentation is particularly strong when motivated by solid observational data, which grounds experiments in biological realities, or by theoretical considerations. For example, theoretical considerations shaped the development of testable hypotheses and experiments in studies of optimal foraging. Optimal foraging theory investigates whether organisms behave in a manner that maximizes energy acquisition rates or efficiency, and it is grounded in a simple yet powerful mathematical framework.

To explore this in more detail, let’s imagine an organism—a bird for example—that forages in discrete habitat patches. An individual needs to travel to a particular patch and then start searching for prey items. As prey items are consumed, the rate at which they are encountered declines; hence, the the cumulative number of prey items found in a particular habitat patch is a decelerating curve, and the slope of the curve eventually approximates zero when all prey items in a patch are consumed (this is known as the law of diminishing returns). The big question is, at what point should the bird stop looking for prey items and instead travel to the next habitat patch where food is still abundant? It turns out that the optimal search time depends on the travel time between habitat patches and the shape of the curve describing the prey acquisition rate. The actual solution of the problem is most easily derived graphically, where the maximum rate of energy gain is defined by the slope of the tangent line of the prey acquisition curve that goes through the point defining the travel time on the x-axis (Figure 8.6A). If the individual spends less than the optimal feeding time in a patch, the slope of the line declines, reducing the energy gain per unit time. If the individual spends more than the optimal feeding time in a patch, the the slope of the line, and consequently the rate of energy gain, declines as well.

This basic model of optimal foraging allows us to make very clear theoretical predictions about how variation in travel time should affect the optimal amount of time spent in any given foraging patch. If the travel time between patches is relatively short, individuals should spend less time in a particular foraging patch (Figure 8.6B). In contrast, if travel times between patches are longer, the energy acquisition rate is maximized when search times are longer as well. But do organisms actually behave optimally? Has natural selection led to organisms making economical decisions?

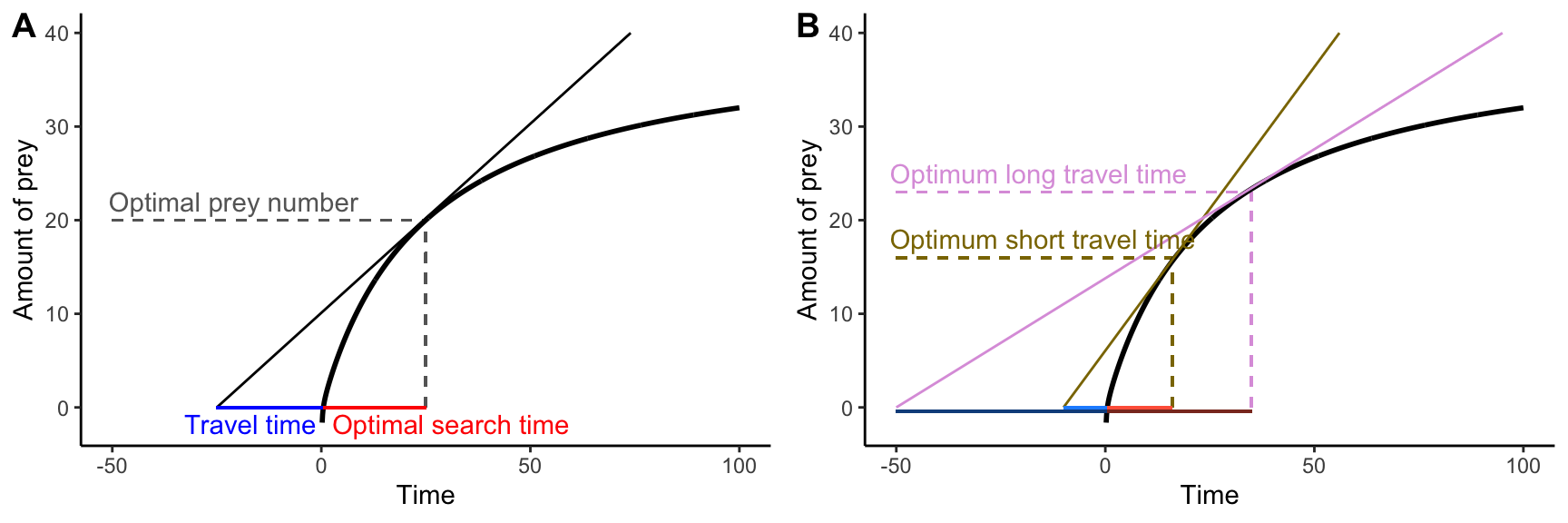

Figure 8.6: The marginal value theorem applied to optimal foraging. A. For any travel time (plotted in blue along the negative portion of the x-axis), the maximum rate of energy acquisition can be determined as the slope of the tangent line of the prey acquisition curve that goes through the point defining the travel time on the x-axis. Accordingly, the optimal search time and the optimal prey number are given by the x and y coordinates of the tangent point. B. Varyint the travel time from shory (brown) to long (pink) changes the optimal food searching time from short to long.

The optimal foraging model makes clear predictions that can be tested experimentally. To do so, Kacelnik (1984) trained free-living starlings (Sturnus vulgaris) to provision their young with mealworms from artificial feeding stations. Manipulating the interval at which mealworms were released, Kacelnic was able to precisely control the shape of the resource acquisition curve; ever-longer intervals between individual prey items mimicked a diminishing return rate assumed in a patch-foraging model. After training, Kacelnik positioned the feeding stations at varying distances (8–600 meters) from the starlings’ nests to simulate variation in travel time between food patches, and he then quantified how many mealworms each starling brought back to the nest after each foraging trip. The prediction was clear: the farther away the feeding station was placed, the more prey items the starlings should bring back with every trip. And, this is exactly what Kacelnik found (Figure 8.7). In fact, the observed number of prey items closely followed the theoretical predictions made by the model.

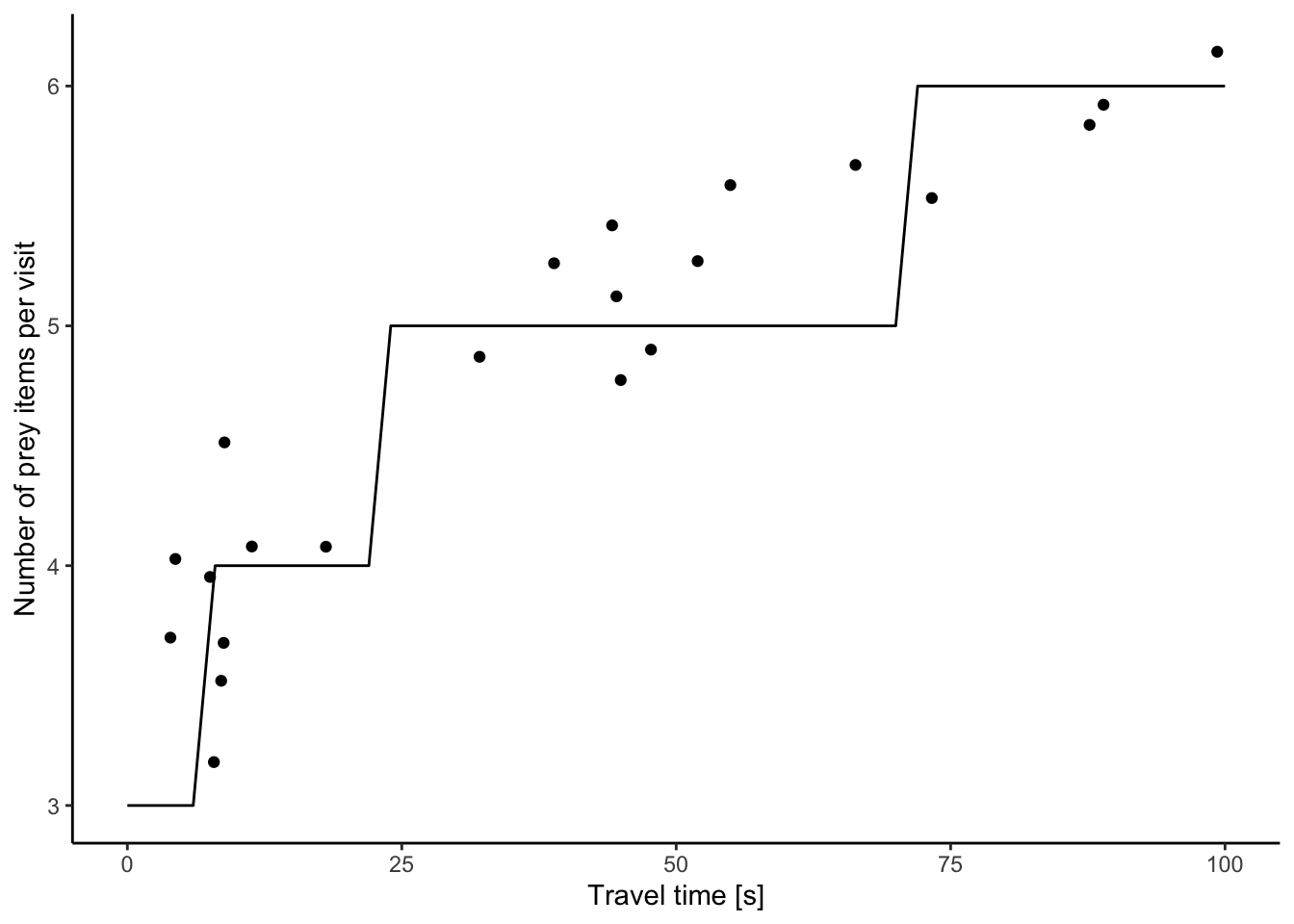

Figure 8.7: Number of prey items collected by starlings as a function of travel time between food patches. The black line represents the theoretical prediction derived from the marginal value theorem in Figure 9.6. Data from Kacelnik (1984).

The few exemplar studies on adaptation discussed here illustrate the complementary insights that can be gained from observational studies grounded in ecological realities, experimental studies that control for confounding variables and help to identify causal relationships, and theoretical models that establish clear predictions based on first principles. While not all approaches are feasible in all study systems, addressing the same problem from different angles and looking for consistencies in the emerging solutions is critical to avoid premature conclusions about adaptation. Conflicting evidence on a given topic does not necessarily invalidate somebody’s work and conclusions; rather, it is just an indication that the context and intricacies of a particular trait (or its uses) are not yet fully understood and require additional investigation.

8.1.3 Local Adaptation within Species

Phenotypic variation is, of course, not only evident between species; there can be an extraordinary amount of phenotypic variation within and among populations of the same species as well. Just consider the staggering color variation among different populations of the stawberry poison-dart frog (Oophaga pumillio; Figure 8.8). Throughout its range, which spans from Nicaragua south to Panama, isolated populations exhibit completely different colors and patterns, even across very small geographic distances. While among-population variation is common in many species, the core question is why? What phenotypic differences reflect adaptation to local environmental conditions?

Figure 8.8: Intraspecific variation observed in the poison dart frog Oophaga pumillio across islands of the Bocas del Toro Archipelago Panama. Note that Allobates talamancae is a nontoxic frog species that coexists with the other species. Photo: Mann and Cummings (2012), CC BY-SA 4.0.

Patterns of local adaptation can be uncovered through trait-environment correlations. Such correlations are often evident across vast geographic scales. For example, consistent with the predictions of Bergmann’s rule, many species exhibit a latitudinal gradient in body size. Populations of Drosophila subobscura, which is naturally distributed across Europe, exhibit a relatively small body size in southern portions of the species range around the Mediterranean Sea, while they get progressively larger toward the northern edge of the distribution in Germany and Denmark (Figure 8.9A). Interestingly, a parallel cline in body shape has evolved in D. subobscura populations of North America, where the species was introduced in the early 1980s (Figure 8.9A). As for comparative analyses among species, replication of trait-environment correlations can be evidence for the role of natural selection in the evolution of phenotypic gradients.

Trait-environment correlations alone, however, are not sufficient to infer adaptation—even when similar phenotypic clines have repeatedly emerged along replicated environmental gradients. This is because natural selection is just one mechanism by which such clines can emerge. Alternatively, the clinal expression of phenotypes can be a product of phenotypic plasticity, where individuals differ between populations simply due to exposure to distinct environmental conditions—and not because of differentiation at genetic loci controlling the expression of a trait. Consequently, common-garden experiments are necessary to disentangle the relative contributions of environmental and genetic variation to the phenotypic variation observed among populations. In common garden experiments, populations from different parts of a species’ range are exposed to the exact same environmental conditions to test whether traits differences observed in nature are retained under experimental conditions. Such common garden experiments in Drosophila melanogaster have shown that among-population variation in body size persists in the laboratory, although the slope of the regression line is reduced, suggesting that genetic differentiation and phenotypic plasticity both contribute to the observed phenotypic differences in nature (Figure 8.9B).

It is also important to note that trait-environment correlations must not always occur over vast geographic distances, nor is phenotypic differentiation always gradual. For example, local adaptation of many plant species to different soil conditions can occur at very small spatial scales that are better measured in meters than kilometers, and yet they include discrete ecotypes that correspond to different soil types. Whether local adaptation leads to continuous gradients or discrete ecotypes depends on the strength, nature, and spatial distribution of natural selection, the genetic architecture underlying the focal traits, and the connectedness of populations through gene flow.

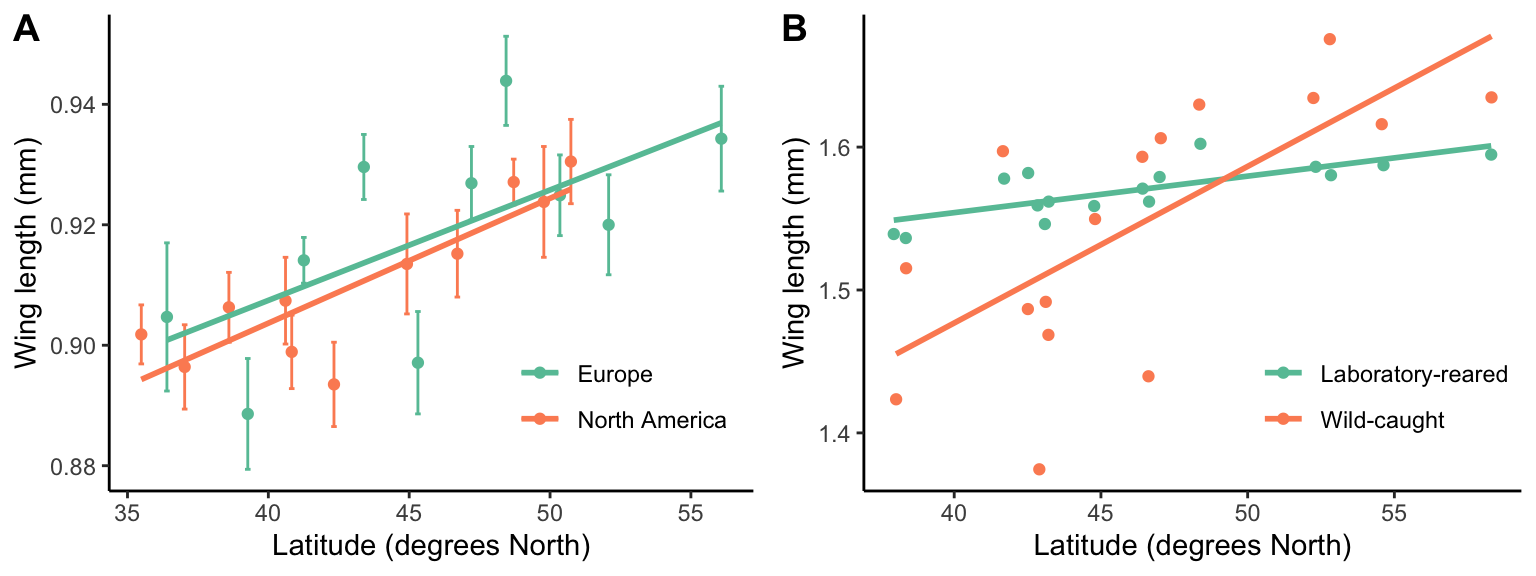

Figure 8.9: A. Body size variation in Drosophila subobscura along a latitudinal gradient in its native European range and its introduced North American range. Data from Huey et al. (2000). B. Body size variation of Drosophila melanogaster along a latitudinal gradient for wild-caught individuals and common-garden-reared individuals from the same populations. Data from Imasheva et al. (1994).

A complementary approach to detecting local adaptation is the use of translocation or transplant experiments, where the performance of different phenotypes is compared under different environmental conditions. Such experiments allow us to determine how a particular phenotype performs in different habitats relative to its original home habitat, and they allow us to compare the performance of local phenotypes to foreign phenotypes from other habitats. Most clearly, evidence for local adaptation is uncovered when different phenotypes perform best in their home habitat, and if they simultaneously outperform any foreign phenotypes (Figure 8.10A). However, a particular phenotype does not need to perform best in its home environment as long as it is able to perform better than all other phenotypes (Figure 8.10B). This frequently happens in populations adapted to extreme environmental conditions. Specific adaptations allow them to tolerate adverse conditions and outcompete nonadapted individuals, but even so they still have a higher fitness in the absence of the stressor that they are uniquely adapted to. Conversely, superior performance of a phenotype in its home habitat does not make it locally adapted if it is outcompeted by other phenotypes (Figure 8.10C).

Figure 8.10: Possible outcomes of translocation experiments. Orange indicates the performance of individuals from habitat A, green the performance of individuals from habitat B. In scenarios (A) and (B), local phenotypes outperform foreign phenotypes in their own habitat. In scenarios (A) and (C), phenotypes perform better in their home habitat than in an away habitat. Note that only scenarios (A) and (B) are examples of local adaptation. Adopted from Kawecki & Ebert (2004).

A classic system for the study of local adaptation to diverse environmental conditions is the mummichog (Fundulus heteroclitus), a small coastal fish species that can be found in both fresh and brackish waters. This distribution across a major ecotone naturally raises questions about whether these fish are locally adapted to different salinities, or if they can flexibly modify their physiology and perform equally well in either environment. Reid Brennan and his colleagues (2016) collected fish from fresh and brackish water populations and acclimated half of the individuals from each habitat to either fresh or brackish water in the laboratory. If mummichog are locally adapted, we would expect the brackish water fish to outperform freshwater fish in brackish water—irrespective of acclimation conditions—and vice versa. This is exactly what the researchers found when they compared the endurance of fish swimming under different environmental conditions (Figure 8.11A). While the endurance of freshwater individuals was not significantly different across environments, the performance of brackish water fish differed dramatically depending on water type; they outperformed freshwater fish under high salinity conditions, and they were outperformed under low salinity conditions. Interestingly, another aspect of organismal performance—metabolic scope, which is a measure of the energy organisms can mobilize after accounting for the minimum energy required to sustain life—showed a very different pattern (Figure 8.11B). Fish from both populations performed better in brackish than freshwater, and the fact that there were no population differences in this trait indicates that variation is induced by plasticity.

Such conflicting evidence is not unusual when we attempt to infer local adaptation by measuring organismal performance across different environmental conditions with different metrics. After all, among-population variation in one trait may be shaped primarily by genetic differentiation, while variation in another trait may be entirely plastic; after all, different traits likely have different genetic and developmental architectures. This complication highlights the importance of thinking critically about how we actually measure organismal performance and, ultimately, fitness. In natural systems, it is nearly impossible to directly measure fitness because of the complexity of phenotyes and selective regimes. Researchers often measure other aspects of organismal performance (growth, survival, endurance, etc.) as fitness proxies, which requires a careful examination of the assumptions we make about the relationships of different fitness proxies and actual fitness.

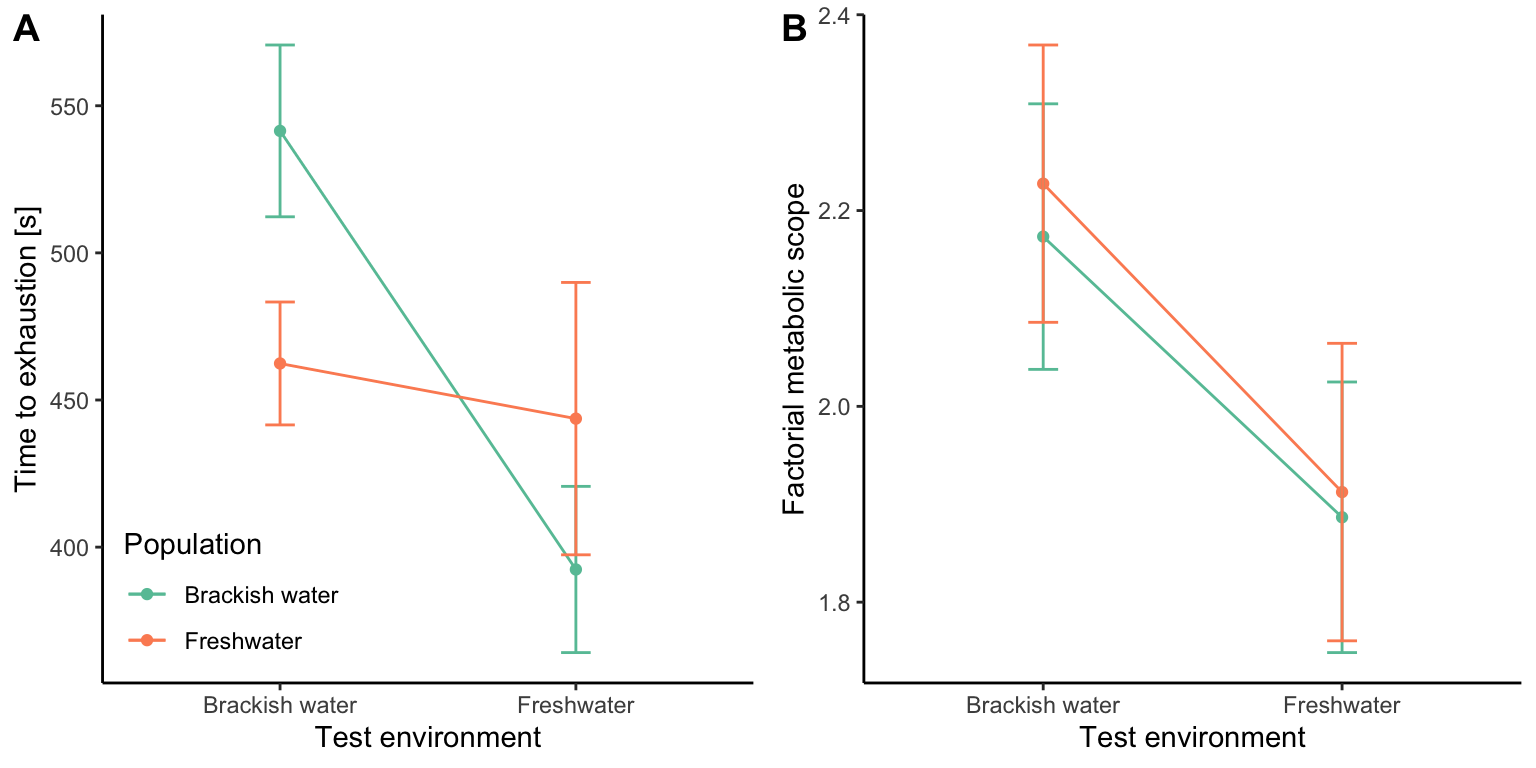

Figure 8.11: A. Swimming endurance and B. metabolic scope of Fundulus heteroclitus from fresh and brackish water populations under fresh and brackish water conditions. Data from Brennan et al. (2016).

8.2 References

• Brennan RS, R Hwang, M Tse, NA Fangue, A Whitehead (2016). Local adaptation to osmotic environment in killifish, Fundulus heteroclitus, is supported by divergence in swimming performance but not by differences in excess post-exercise oxygen consumption or aerobic scope. Comparative Biochemistry and Physiology A 196, 11–19.

• Collar DC, BC O’Meara, PC Wainwright, TJ Near (2009). Piscivory limits diversification of feeding morphology in centrarchid fishes. Evolution 63, 1557–1573.

• Doughty P, DN Reznick (2004). Patterns and analysis of adaptive phenotypic plasticity in animals. In: TJ DeWitt, SM Scheiner (eds), Phenotypic Plasticity: Functional and Conceptual Approaches. London, England: Oxford University Press. pp 126-150.

• Fox CW, TA Mousseau (1996). Larval host plant affects fitness consequences of egg size variation in the seed beetle Stator limbatus. Oecologia 107, 541–548.

• Fox CW, MS Thakar, TA Mousseau (1997). Egg size plasticity in a seed beetle: an adaptive maternal effect. American Naturalist 149, 149–163.

• Fox CW, ME Czesak, TA Mousseau, DA Roff (1999). The evolutionary genetics of an adaptive maternal effects: eggs size plasticity in a seed beetle. Evolution 53, 552–560.

• Huey RB, JG Kingsolver (1989). Evolution of thermal sensitivity of ectotherm performance. Trends in Ecology & Evolution 4, 131–135.

• Huey RB, GW Gilchrist, ML Carlson, D Berrigan, L Serra (2000). Rapid evolution of a geographic cline in size in an introduced fly. Science 287, 308–309.

• Imasheva AG, OA Bubli, OE Lazebny (1994). Variation in wing length in Eurasian natural populations of Drosophila melanogaster. Heredity 72, 508–514.

• Kacelnik A (1984). Central place foraging in starlings (Sturnus vulgaris): I. Patch residence time. Journal of Animal Ecology 53, 283–299.

• Kawecki TJ, D Ebert (2004). Conceptual issues in local adaptation. Ecology Letters 7, 1225–1241.

• Langerhans, R. B., & DeWitt, T. J. (2002). Plasticity constrained: over-generalized induction cues cause maladaptive phenotypes. Evolutionary Ecology 4: 857-870.

• Maan ME, ME Cummings (2012). Poison frog colors are honest signals of toxicity, particularly for bird predators. American Naturalist 179, E1–E14.

• Milinski M, R Heller (1978). Influence of a predator on the optimal foraging behaviour of sticklebacks (Gasterosteus aculeatus L.). Nature 275, 642–644.

• Near TJ, DI Bolnick, PC Wainwright (2005). Fossil calibrations and molecular divergence time estimates in centrarchid fishes (Teleostei: Centrarchidae). Evolution 59, 1768–1782.
